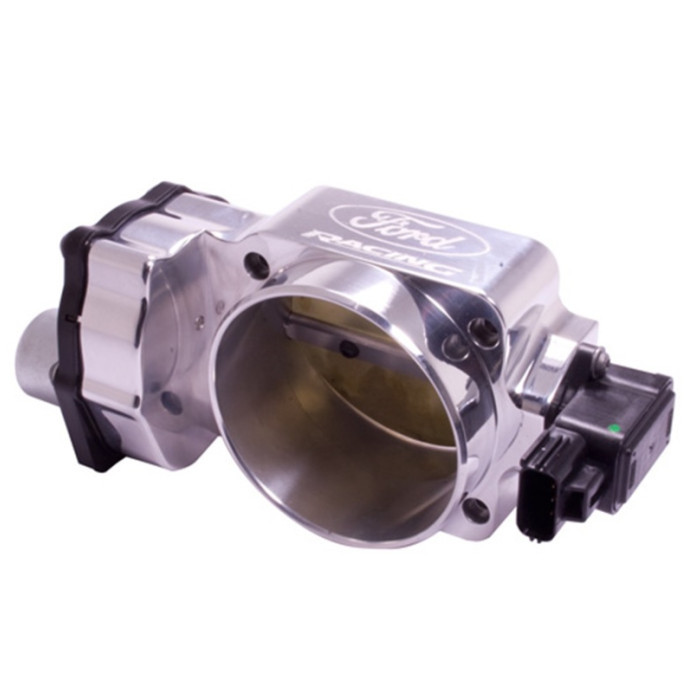

Ford Performance 11-14 Mustang 5.0L 90 mm Throttle Body

• 90 MM Billet Aluminum Throttle Body
• Fits 2011-2014 Mustang GT/ 2012-2013 Boss 302 with stock 80mm throttle body (NOT compatible with 2015 Mustang GT)

• CFM Rating:1132cfm; with adapter 1101cfm (stock 80mm throttle body: 913cfm)*

• 4" diameter leading edge larger than stock throttle body - requires use of 4" ID silicone hose adapter or reducer
• 4" air inlet tube is recommended for maximum horsepower
• When using factory 3.5" diameter air inlet tube the molded rubber throttle body hose must be removed
• Ford Racing's performance electronic throttle bodies are for vehicles equipped with electronic throttle control (ETC)
• Includes jumper harness

• Does not include calibration, calibration required.

All Ford Racing ETC throttle bodies feature:

• All factory sensors installed - no need to tear apart your original throttle body
• Calibrated for idle air flow using the same procedure as production throttle bodies
• Throttle body features CNC'd Ford Racing logo

• Precision billet construction with tapered inlet for consistent high flow
• Validation through hundreds of hours of dyno, racing, and street performance driving
• Polished aluminum for great looks

Requires:

Adapter: M-9474-M50 for OEM Mustang GT 5.0L 4V TiVCT intake

Adapter: M-9474-M50B for Ford Racing Boss intake M-9424-M50BR

Notes:

Adapter M-9474-M50 rotates throttle body approximately 15 degrees counter clockwise

Engine cover M-9680-M50 covers throttle body on 5.0L 4V Ti-VCT intake

Boss intake M-9424-M50BR can be port matched to accept throttle body without adapter, requires custom gasket/RTV

*All cfm ratings are calibrated at 28-inches of water, measured on SuperFlow SF-1020 Flow Bench.
